Description

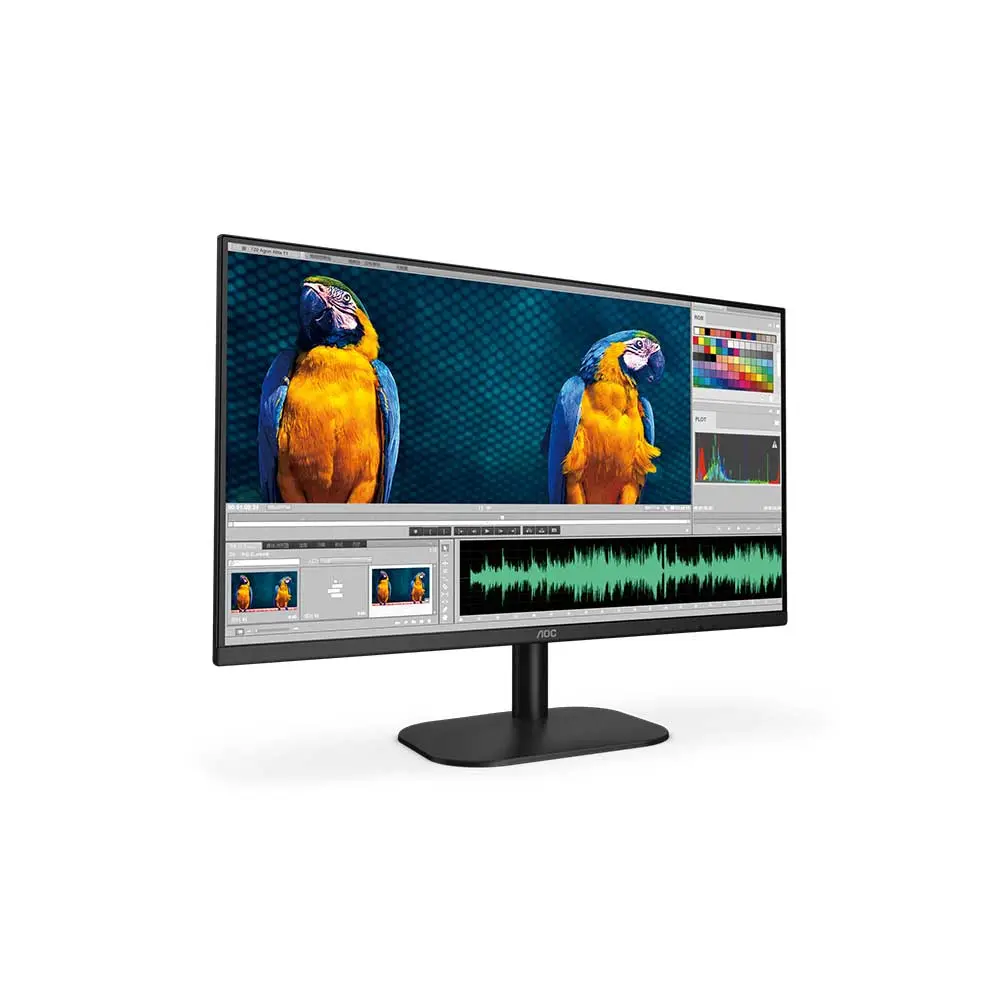

AOC 22B2HM2 22 Inch VA Panel FHD Monitor
The AOC 22B2HM 22 Inch Monitor display delivers a simple high-quality experience that is ideal for both the modern office user and home user. The VA panel in Full HD (1920 x 1080@75Hz) resolution offers crisp visuals and good color consistency across with viewing angles. With a slim and 3-sided frameless design, the monitor also saves space and improves focus – a fact further enhanced by its inclusion of Flicker Free and Low Blue Mode eye protection technology, Screen+ multitasking software, VESA mount compatibility for flexible setup, and more.
| Model name | 22B2HM2 |
| Panel | 21.45″ (VA) |
| Pixel Pitch (mm) | 0.2493 (H) × 0.241 (V) |
| Effective Viewing Area (mm) | 478.66 (H) × 260.28 (V) |
| Brightness (typical) | 250 cd/m² |
| Contrast Ratio | 3000 : 1 (Typical) 20 Million : 1 (DCR) |
| Response Time | 4ms GtG |
| Viewing Angle | 178° (H) / 178° (V) (CR > 10) |
| Color Gamut | NTSC 81% (CIE1976) / sRGB 100% (CIE1931) |
| Color Accuracy | – |
| Optimum Resolution | 1920 × 1080 @ 100Hz – HDMI, 1920 × 1080 @ 60Hz – VGA |
| Display Colors | 16.7 Million |
| Signal Input | VGA × 1, HDMI 1.4 × 1 |
| HDCP Version | – |
| USB Hub | no |
| Power Supply | External 19VDC, 1.31A |
| Power Consumption (typical) | 16W |
| Speakers | no |
| Line in & Earphone | Earphone |
| Wall-Mount | 100mm × 100mm |
| Adjustable Stand | Tilt: -5° ~ 20° |
| Product without Stand (mm) | 284.9 (H) × 492.2 (W) × 37.6 (D) |
| Product with Stand (mm) | 380 (H) ×492.2 (W) × 162.9 (D) |
| Product without Stand (kg) | 1.95 |
| Product with Stand (kg) | 2.29 |
| Cabinet Color | Black |
| Regulatory Approvals | BSMI / RCM / MEPS / CE |
| Warranty | 3 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice. |
