Description

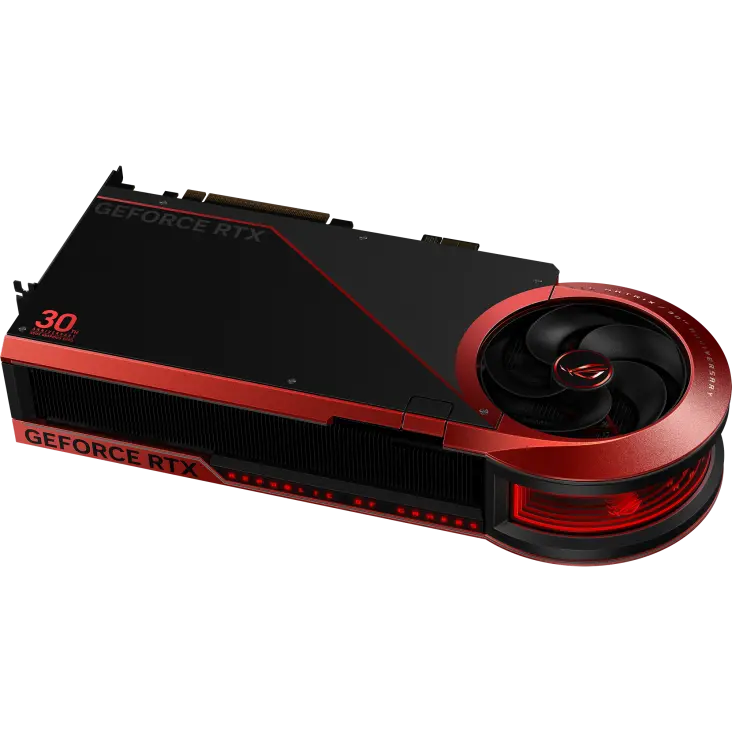

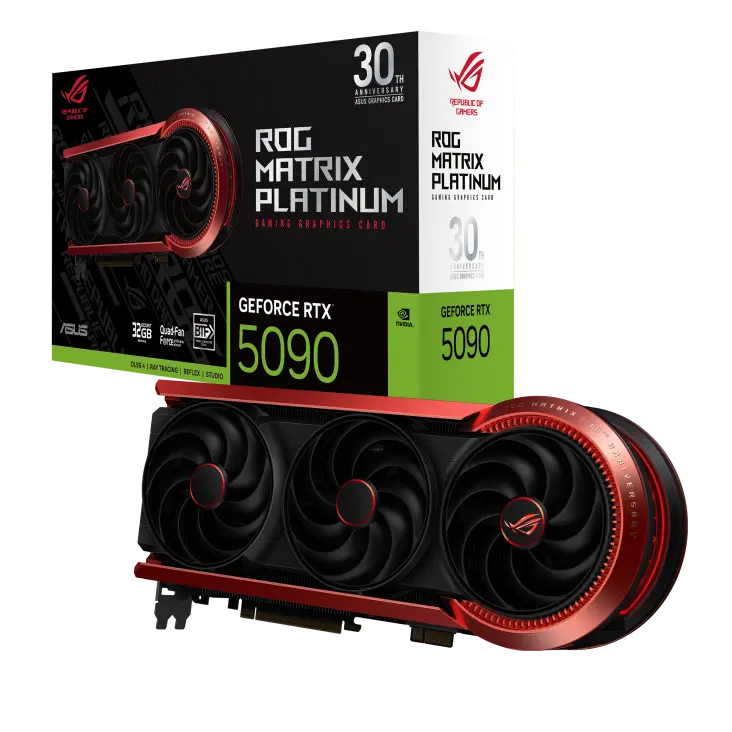

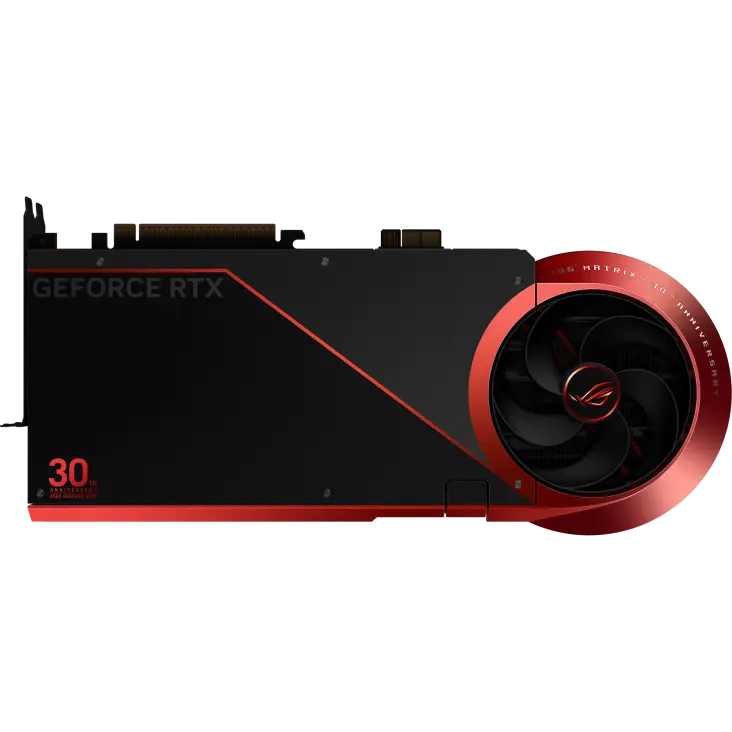

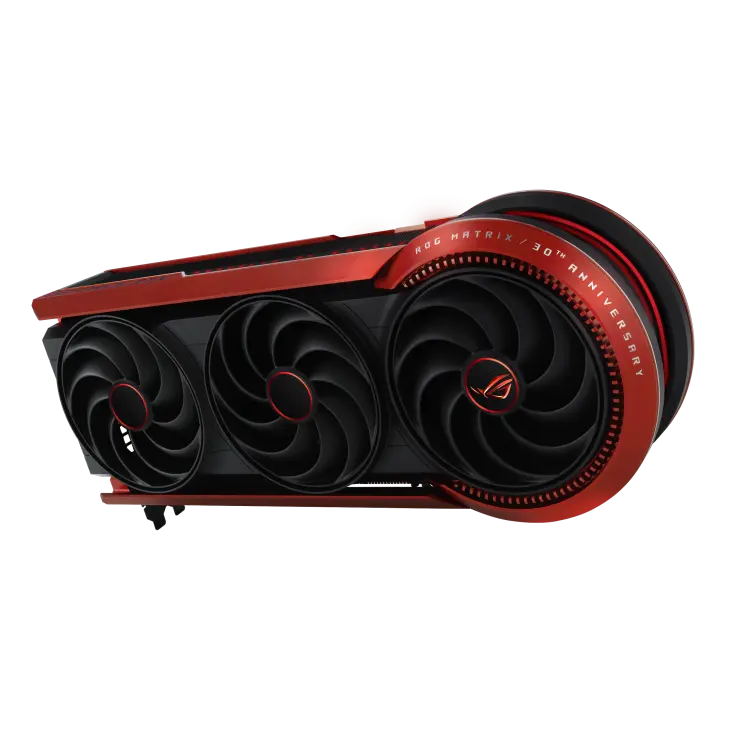

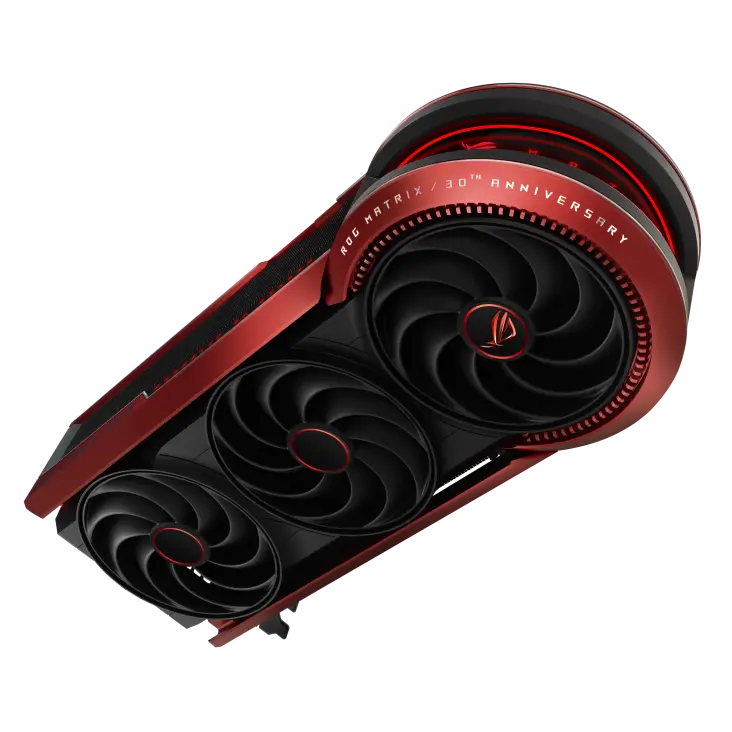

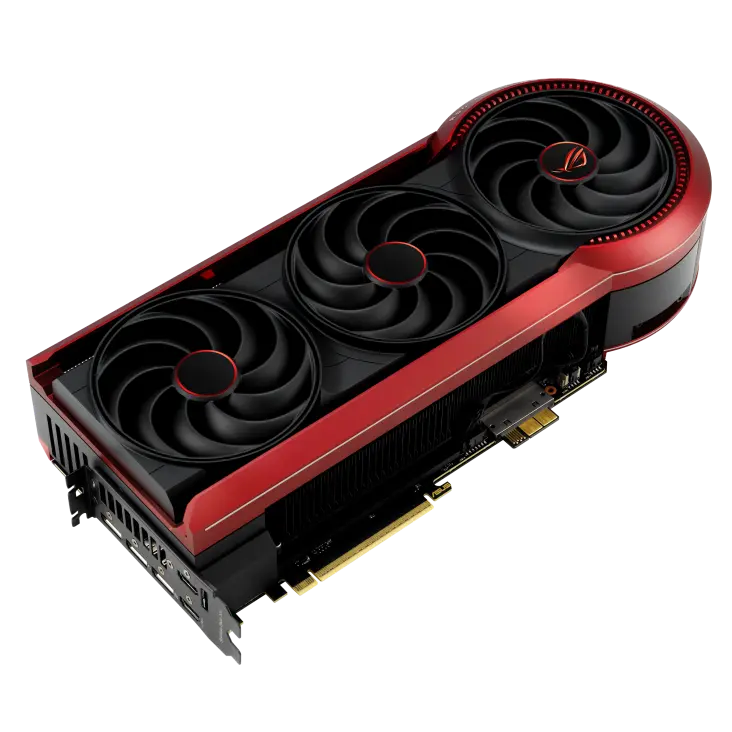

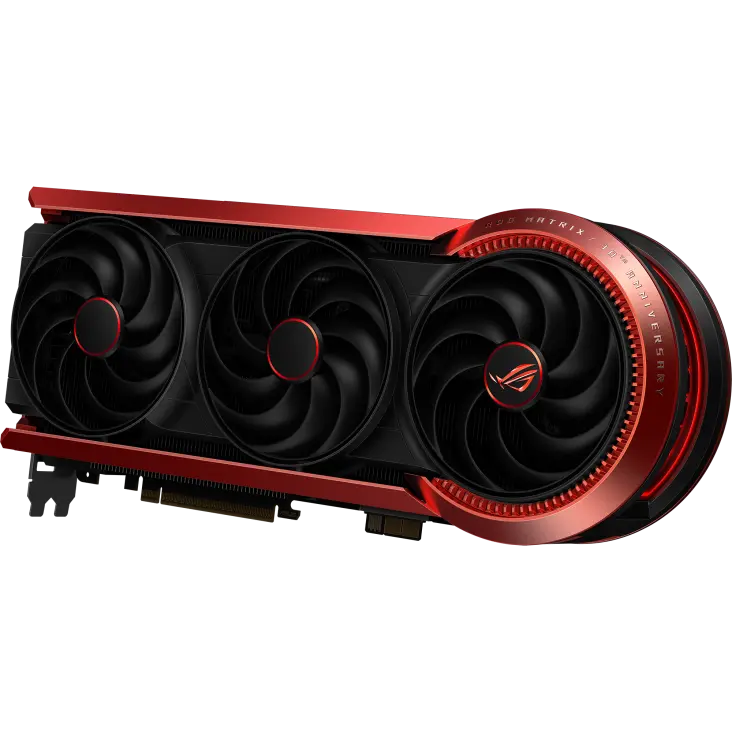

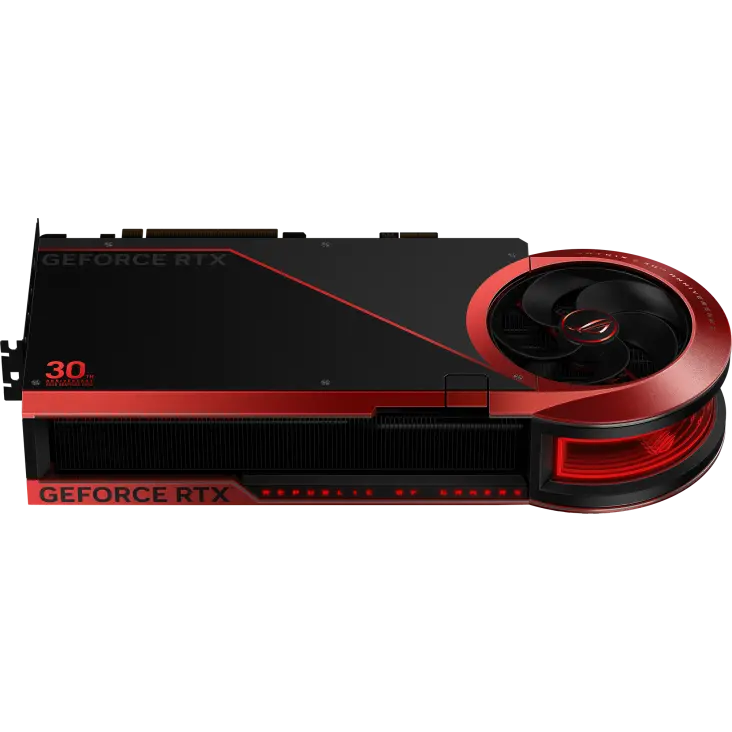

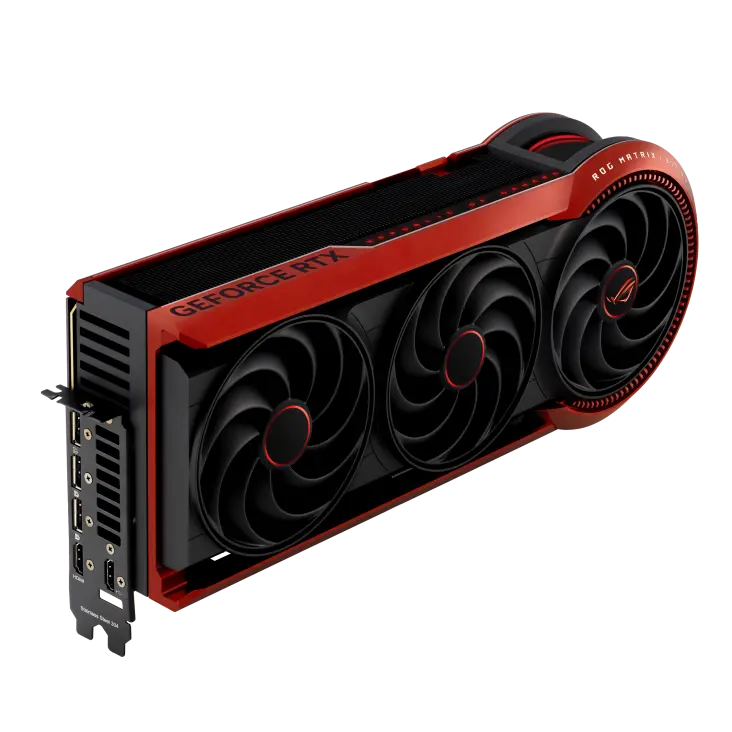

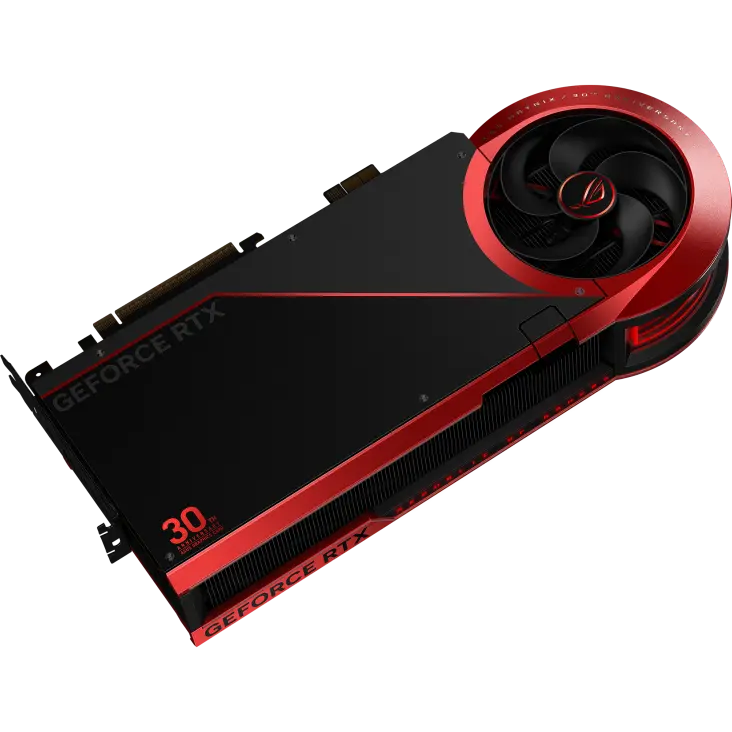

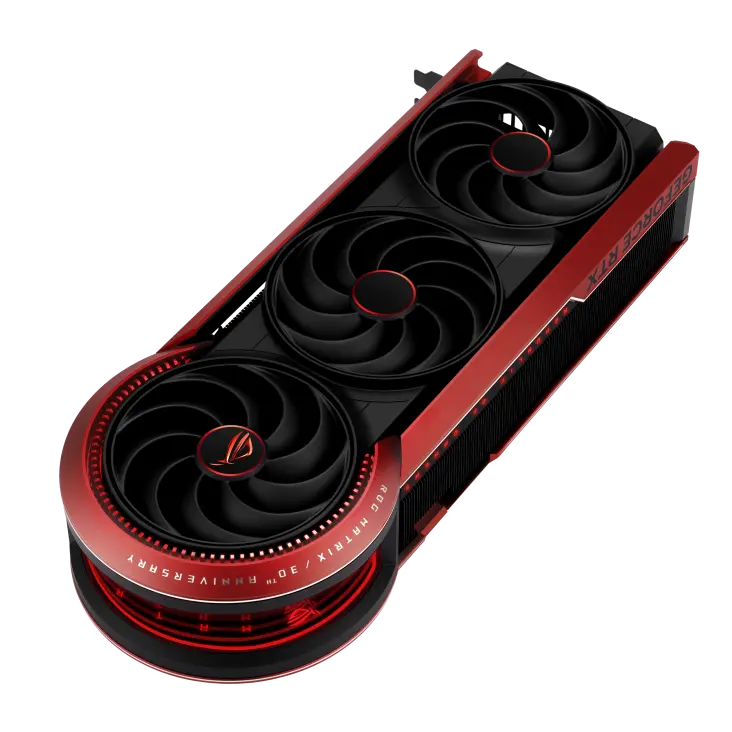

Asus ROG Matrix Platinum GeForce RTX™ 5090 – ASUS Graphics Cards 30th Anniversary Edition
ROG Matrix GeForce RTX™ 5090 – ASUS Graphics Cards 30th Anniversary Edition – Unleashing next-level gaming and thermal performance, drawing on a legacy of innovation to shatter records
- AI Performance: 3352 AI TOPS
- Powered by the NVIDIA Blackwell architecture and DLSS 4

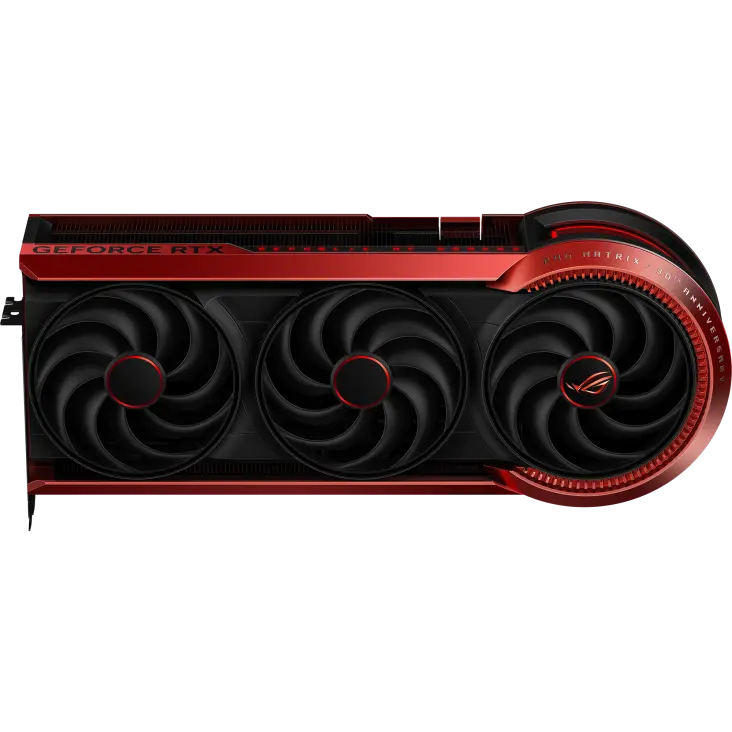

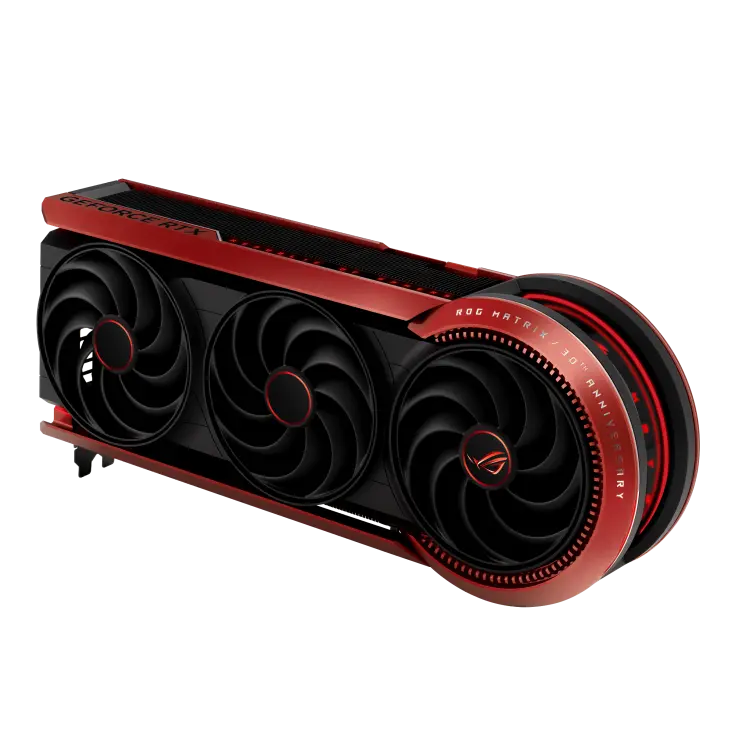

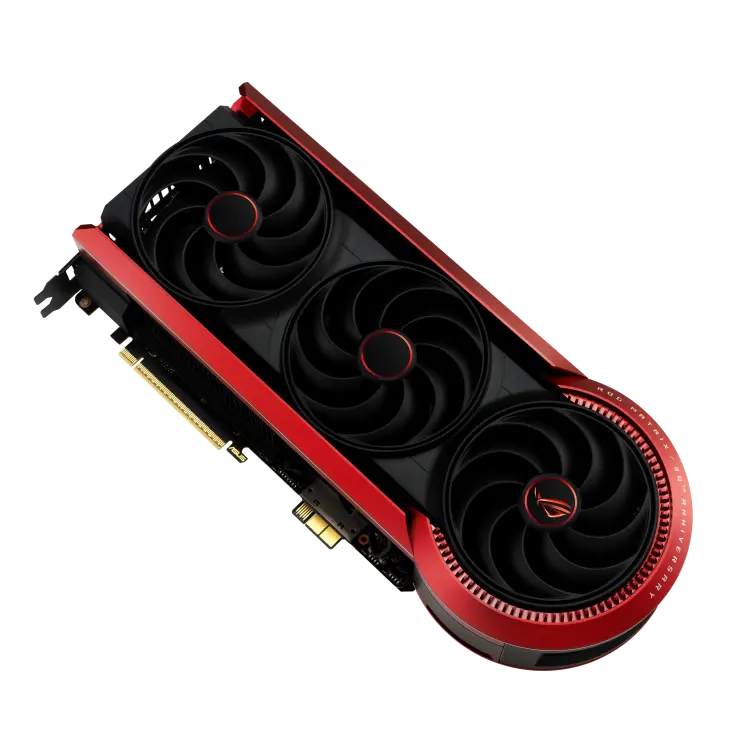

- Quad-fan design boosts air flow and pressure by up to 20%
- Patented vapor chamber with milled heatspreader and heat pipes for lower GPU temperatures
- Liquid metal thermal compound for more efficient GPU cooling and higher boost clock
- 3 oz copper layers enhancing heat dissipation and reducing voltage drops
- Dual power input draws up to 800W when connected to both an advanced BTF motherboard and a power supply via a 12V-2×6 cable

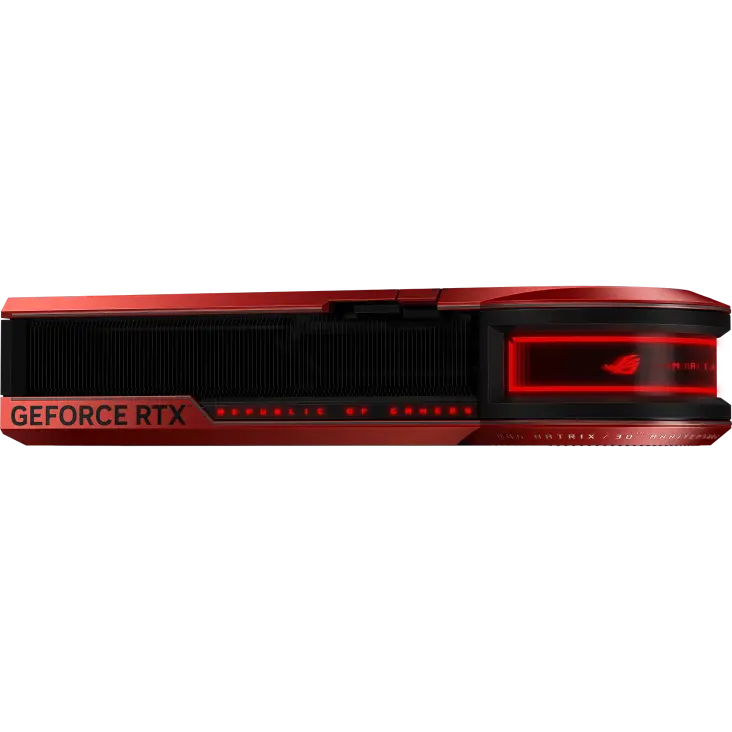

- Aura Lighting on the circular frame delivers a customizable lightshow, easily synchronized with other Aura Sync devices
- Memory Defroster unlocks extreme LN2 overclocking by ensuring system recovery from memory freezes
- GPU Tweak III: intuitive performance tweaking, advanced thermal controls, comprehensive system monitoring, and the innovative Level Sense feature for optimal GPU installation
- Auto-Extreme manufacturing process for precision and reliability
Specifications
| Modal | ROG Matrix Platinum GeForce RTX™ 5090 – ASUS Graphics Cards 30th Anniversary Edition |
| Graphic Engine | NVIDIA® GeForce RTX™ 5090 |
| Ai Performance | 3352 TOPs |
| Bus Standerd | PCI Express 5.0 |
| OpenGL | OpenGL®4.6 |
| Video Memory | 32GB GDDR7 |
| Engine Clock |
OC mode: 2760 MHz Default mode: 2730 MHz(Boost clock) |
| Cuda Core | 21760 |
| Memory Speed | 28 Gbps |
| Memory Interface | 512-bit |
| Resolution | Digital Max Resolution 7680 x 4320 |

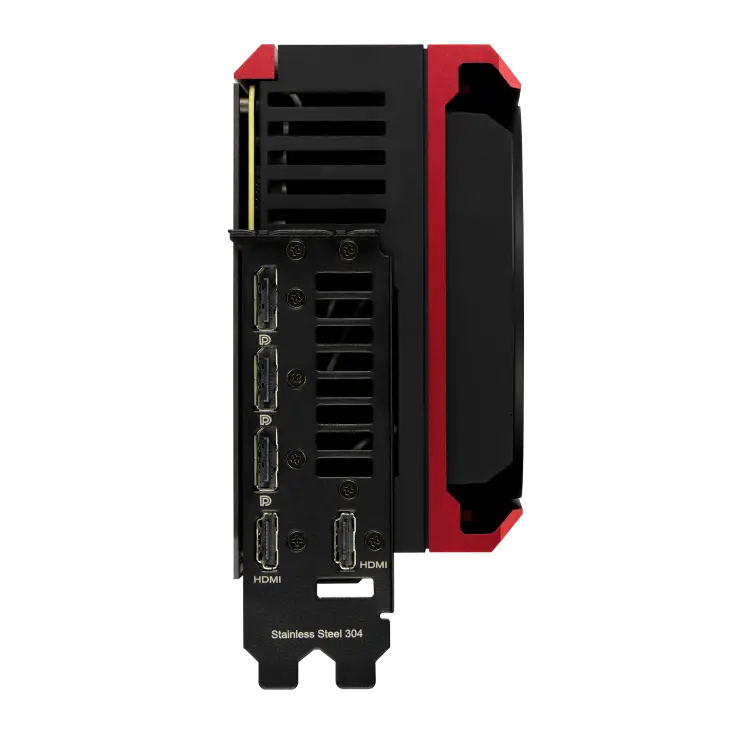

| Interface |
Yes x 2 (Native HDMI 2.1b) Yes x 3 (Native DisplayPort 2.1b) HDCP Support Yes (2.3) |
| Maximum Display Support | 4 |
| NVlink/ Crossfire Support | No |
| Accessories |
1 x Speedsetup Manual 1 x ROG Graphics Card Holder 1 x ROG Velcro Hook & Loop 1 x ROG Magnet 1 x ROG PCB Ruler 1 x Thank You Card 1 x Adapter Cable (1 to 4) 1 x BTF Adapter 1 x ASUS Graphics Cards 30th Anniversary Edition Playing Cards |
| Software | ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Dimentions |
370.3 x 150.5 x 77.3 mm 14.58 x 5.92 x 3.04 inches |
| Recommended PSU | 1200W+ |
| Power Connectors | 1 x 16-pin, Graphics card high-power (GC-HPWR) gold finger |
| Slot | 3.9 slot |
| AURA SYNC | ARGB |
| Hidden-connector (BTF) | With Graphic Card High-Power Gold Finger |
| Note** |
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html * All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products. * Maximum Display Support is specifically applied to simultaneous display situation. |
