Description

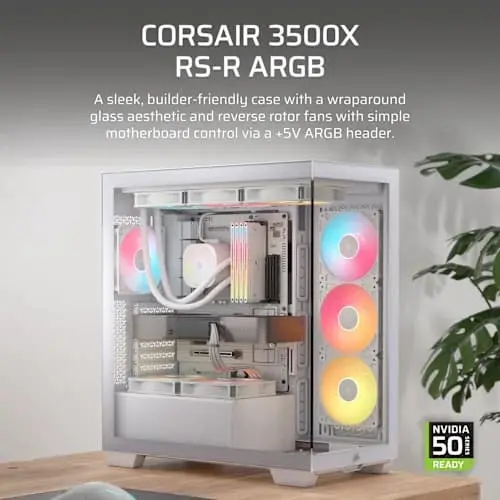

Corsair 3500X RS-R ARGB White E-ATX Mid Tower Cabinet
3500X RS-R ARGB Mid-Tower PC Case
- Wraparound glass view with removable front and side panels
- Three pre-installed RS120-R ARGB fans
- Builder-friendly features for a high-performance custom PC
- Side, roof, and PSU fan mounting points for great cooling
- Compatible with reverse connection motherboards
BUILD WITHOUT BOUNDARIES
You don’t need a large footprint to build a decked-out PC. The 3500X accommodates most large graphics cards and CPU coolers, 360mm radiators, and even E-ATX motherboards, without taking up your entire desk.
REVERSE MOTHERBOARD SUPPORT
Validated for use with ASUS BTF, MSI Project Zero, and GIGABYTE Project Stealth motherboards featuring connections on the back of the board, so your view isn’t spoiled by cables.
INCLUDES RS120-R ARGB PERFORMANCE FANS
Three RS120-R ARGB fans deliver great cooling and vivid lighting, with daisy-chain connections for simple setup. Their reverse-rotor design keeps the vibrant LEDs fully visible, so lighting effects remain clear and unobstructed.
These fans incorporate CORSAIR Magnetic Dome bearings, AirGuide technology, and custom-engineered fan blades, delivering exceptional cooling performance for both radiator and case setups.
COOLING PERFORMANCE
Strong cooling is paramount for a modern PC, and the 3500X excels with side, roof, and PSU fan mounts so you can cover all the angles. And with 360mm radiator mounting points in the side and roof, you’ll have plenty of potential for liquid cooling.
A BREEZE TO BUILD IN
With a modern design approach to a mainstream PC format, the 3500X has the convenient features to take the hassle out of your build.

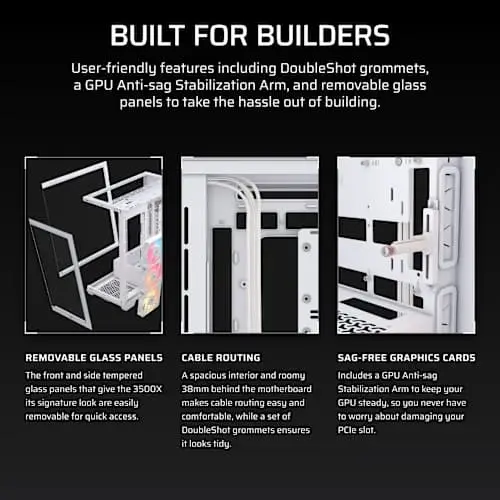

REMOVABLE GLASS PANELS
The front and side tempered glass panels that give the 3500X its signature look are easily removable for quick access.
CABLE ROUTING
A spacious interior and roomy 38mm behind the motherboard makes cable routing easy and comfortable, while a set of DoubleShot grommets ensures it looks tidy.
SAG-FREE GRAPHICS CARDS
Includes a GPU Anti-sag Stabilization Arm to keep your GPU steady, so you never have to worry about damaging your PCIe slot.
WIDE COOLING FLEXIBILITY
Customize your cooling setup with room for up to 10x 120mm fans, plus versatile radiator mounting options including up to 360mm in the side and roof.
MODERN FRONT PANEL I/O
Puts your connections within easy reach, including a USB 3.2 Gen 2 Type-C Port, 2x USB 3.2 Gen 1 Type-A ports, and a combination audio/microphone jack.
- Reset Button
- Headphone / Mic Combo Jack
- USB 3.2 Gen 2 Type-C Port
- 2x USB 3.2 Gen 1 Type-A Ports
- Power Button

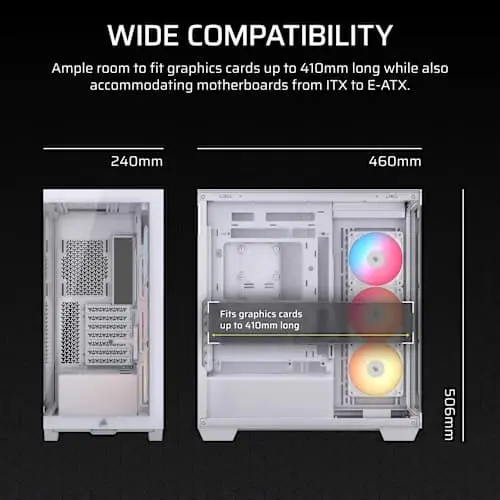

Case Supported: Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)
Case Height: 506
Case Length: 460
Case Width: 240
Material: Steel, Tempered Glass
Case Size: Mid-Tower
Radiator Compatibility: 120mm, 140mm, 240mm, 280mm, 360mm
Case Window: Tempered Glass
Compatible Liquid Coolers: H60, H100, H115, H150 (All Series)]
Internal 3.5″ Drive Bays: 2
Internal 2.5″ Drive Bays: 2
Maximum CPU Cooler Height: 170mm
Maximum PSU Length: 180mm
Case Front IO: (1x) USB 3.2 Gen 2 Type-C, (2x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out
Maximum GPU Length: 425mm
Weight: 10.66kg
Case Expansion Slots: 7 Horizontal (or 4 Vertical)
Case Power Supply: ATX
Radiator Support – Top: 360mm, 280mm, 240mm
Radiator Support – Front: None
Radiator Support – Bottom: None
Radiator Support – Side: 360mm, 280mm, 240mm
Radiator Support – Rear: 1x 120mm
Fan Support – Top: 3x 120mm; 2x 140mm
Fan Support – Front: None
Fan Support – Bottom: 3x 120mm; 1x 140mm
Fan Support – Side: 3x 120mm; 2x 140mm
Fan Support – Rear: 1x 120mm
Front IO Motherboard Connections: 1x HD Audio; 1x USB 3.2 Gen1; 1x USB-3.2 Gen2 Type-E; 1x F_PANEL
Reverse Connector Motherboard Support: Yes
Included Fans: RS ARGB Series

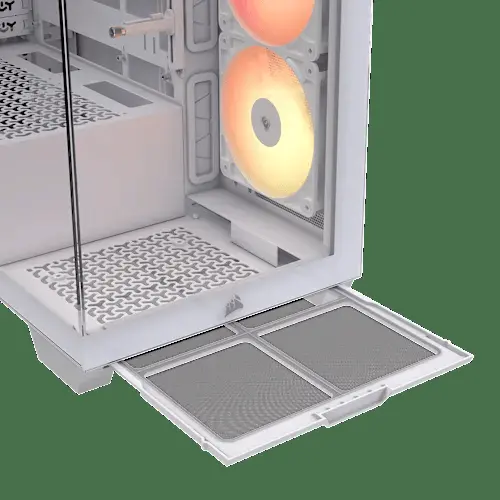

Dust Filtration: Yes
Cable Routing Space: 45mm
RapidRoute Included: Compatible (Sold Separately)
Left Side Panel: Tempered Glass
Right Side Panel: Steel
Vertical Mount Support:Supported (Riser Card Sold Separately)
| Cabinet Size | MID-TOWER |
| Color | White |
| Material | Steel, Tempered Glass |
| Expansion Slots | 7 |
| Motherboard Size | E-ATX,ATX,M-ATX,M-ITX |
| Max CPU Cooler Height | 170mm |
| Max PSU Length | 180mm |
| Max Gpu Length | 425mm |
| Max 3.5″ HDD | 2 |
| Max 2.5″ SSD | 2 |
| Dust Filters | Top |
| Pre Installed Fans | 3 |
| Max Fan Support | 10 |
| Radiator Support | 360mm,280mm,240mm,140mm,120mm |
| Front I/O Panel | 1x HD Audio, 1x USB 3.2 Gen1, 1x USB-3.2 Gen2 Type-E |
| Warranty | 2 Years |
| Note*** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
