Description

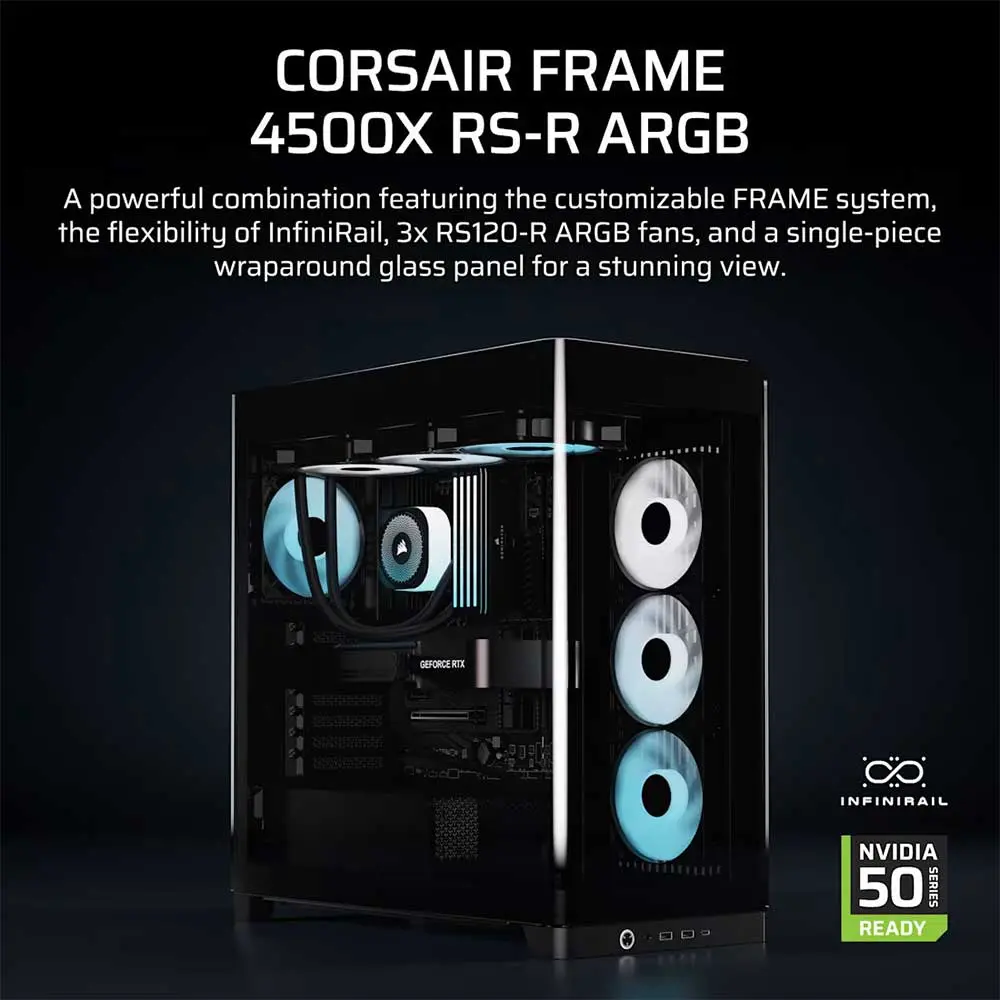

Corsair Frame 4500X RS-R ARGB Panoramic Glass Mid-Tower E-ATX Cabinet Black

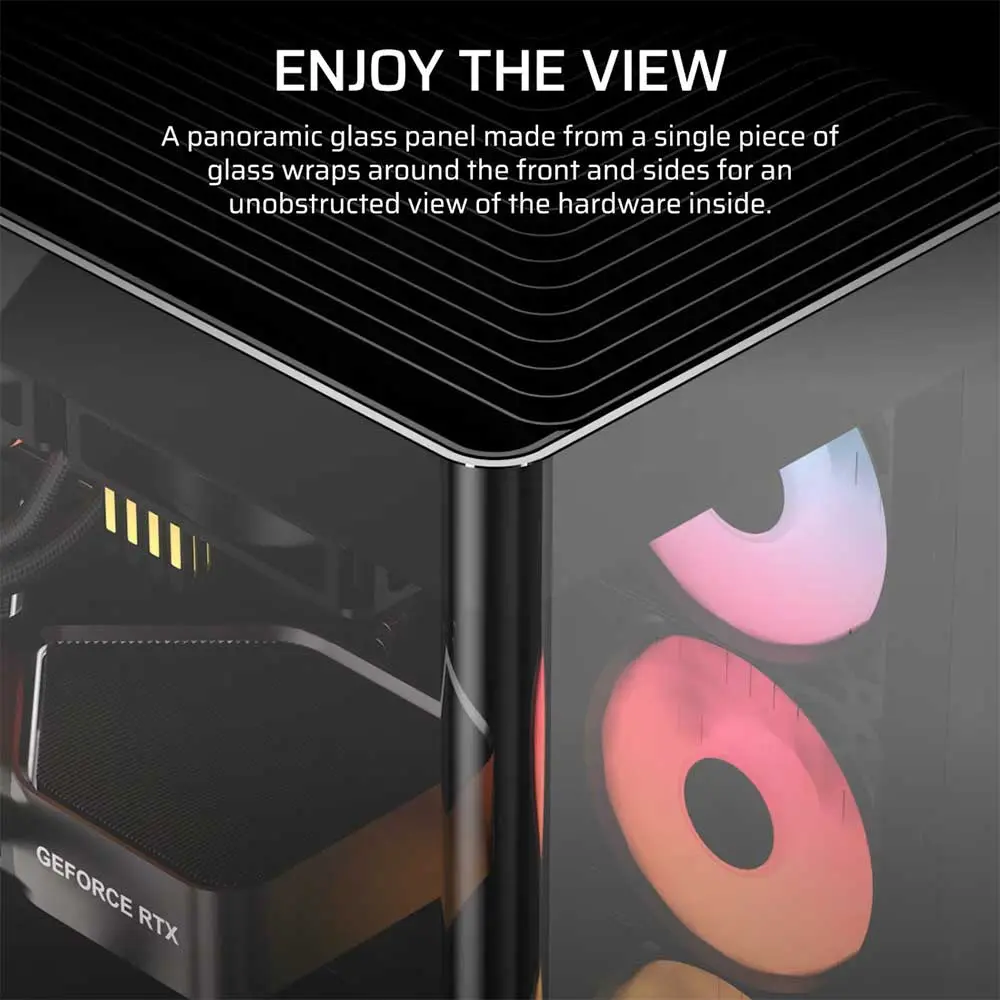

- Single-piece curved glass front and side panel
- InfiniRail™ Fan Mounting System for easier building
- Dual 360mm radiator support

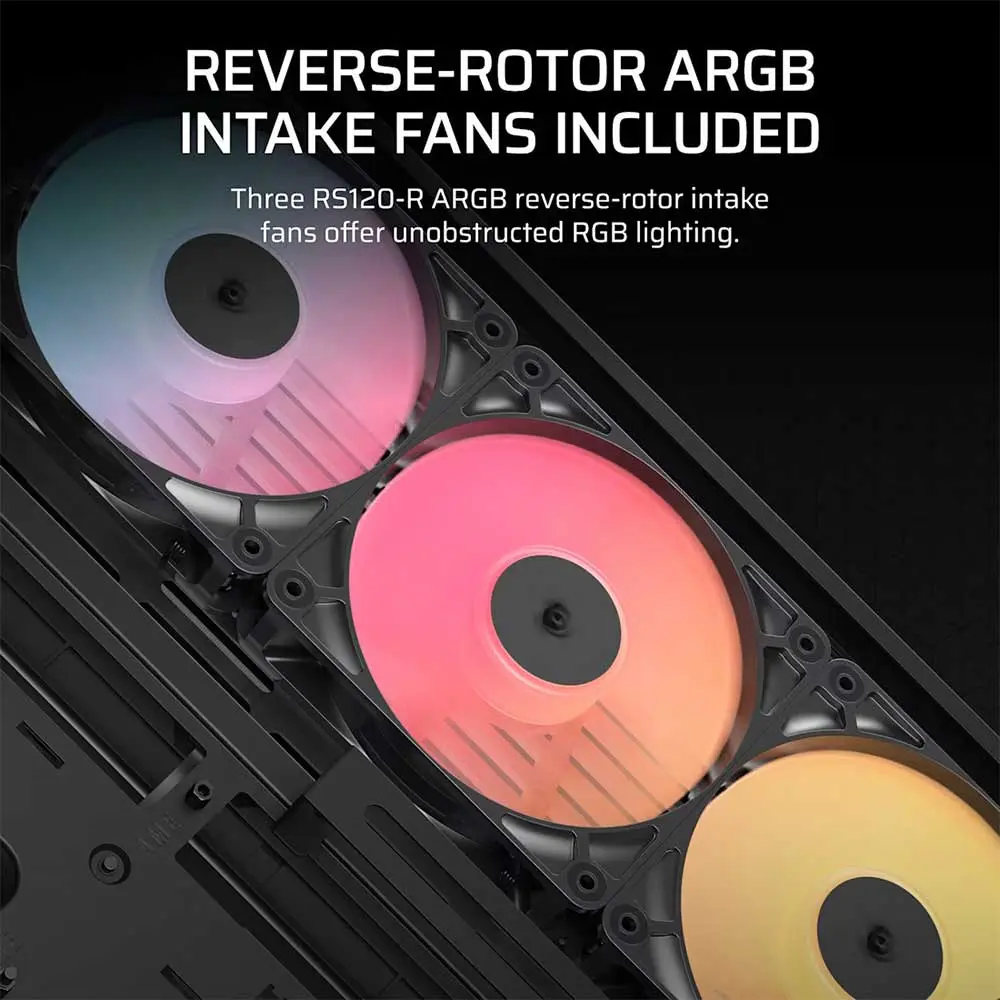

- 3x RS-R ARGB 120mm reverse-rotor fans
- Easy motherboard RGB control with bundled ARGB PWM fans
- GPU Anti-sag Stabilization Arm
- Compatible with reverse connector motherboards
| Case Supported | Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm) |
| Case Height | 478 |
| Case Length | 499 |
| Case Width | 246 |
| Material | Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm) |
| Color | Black |
| Case Size | Mid-Tower |
| Radiator Compatibility | 120mm, 140mm, 240mm, 280mm, 360mm |
| Case Window | Tempered Glass |
| Compatible Liquid Coolers | H60, H100, H115, H150, NAUTILUS, TITAN |
| Internal 3.5″ Drive Bays | 1 |
| Internal 2.5″ Drive Bays | 2 |
| Maximum CPU Cooler Height | 185mm |
| Maximum PSU Length | 250mm |
| Case Front IO | (1x) USB 3.2 Gen 2 Type-C, (2x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out |
| Maximum GPU Length | 460mm |
| Weight | 11.58kg |
| Case Expansion Slots | 7 Horizontal or 3 Vertical |
| Case Power Supply | ATX |
| Radiator Support – Top | 360mm, 280mm, 240mm |
| Radiator Support – Front | None |
| Radiator Support – Bottom | None |
| Radiator Support – Side | 360mm, 280mm, 240mm |
| Radiator Support – Rear | 140mm, 120mm |
| Fan Support – Top | 3x 120mm, 2x 140mm |
| Fan Support – Front | None |
| Fan Support – Bottom | 3x 120mm, 1x 140mm |
| Fan Support – Side | 3x 120mm, 2x 140mm |
| Fan Support – Rear | 1x 120mm, 1x 140mm |
| Front IO Motherboard Connections | 1x HD Audio; 1x USB 3.2 Gen1; 1x USB-3.2 Gen2 Type-E; 1x F_PANEL |
| Reverse Connector Motherboard Support | Yes |
| Included Fans | RS ARGB Series |
| Dust Filters | Yes |
| Cable Routing Space | 37mm |
| RapidRoute Included | No |
| Left Side Panel | Tempered Glass |
| Right Side Panel | Steel |
| Vertical Mount Support | Supported (Riser Card Sold Separately) |
| Warranty | 2 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
