Description

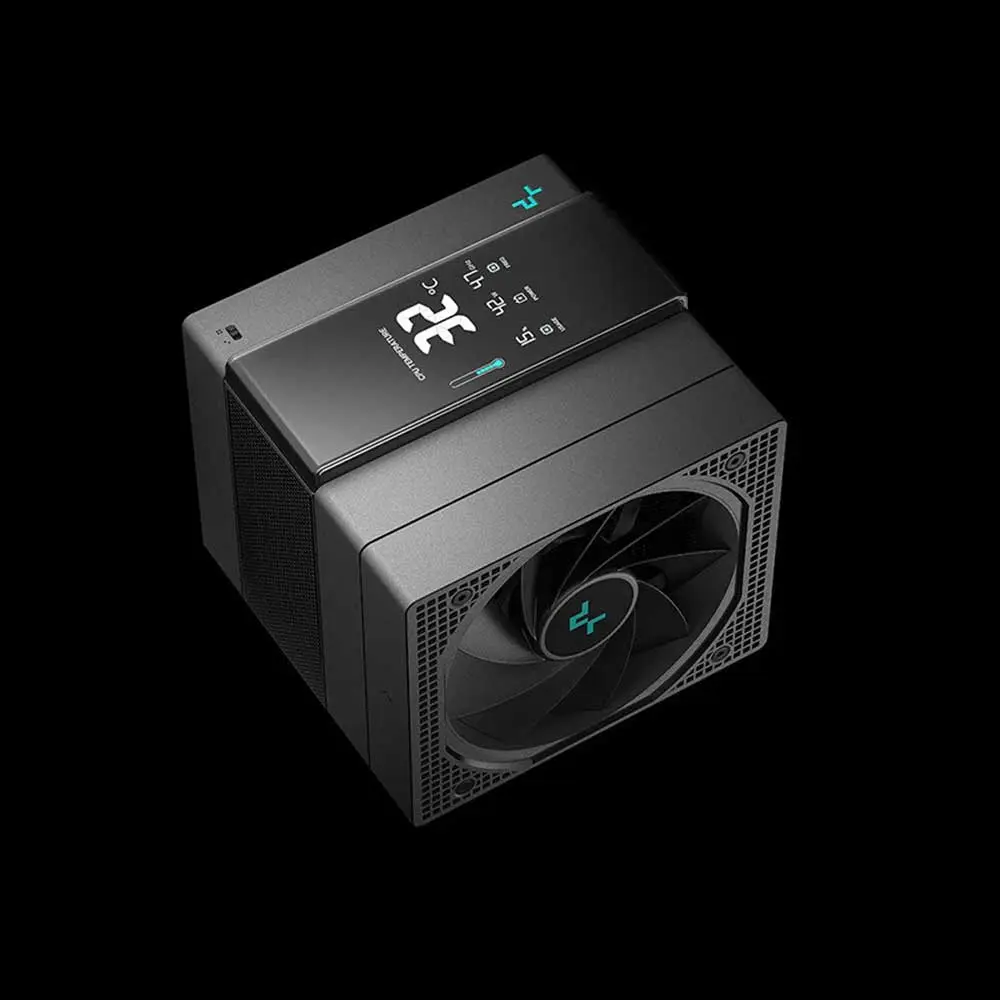

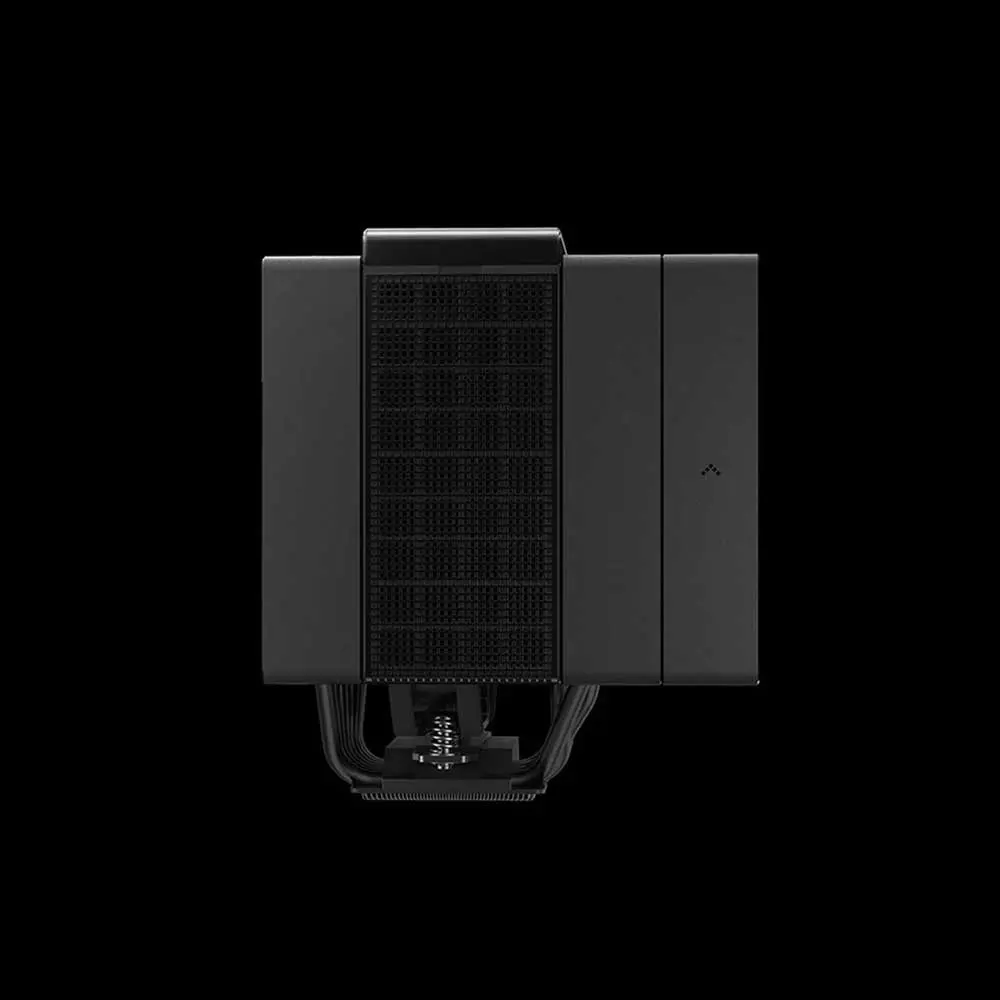

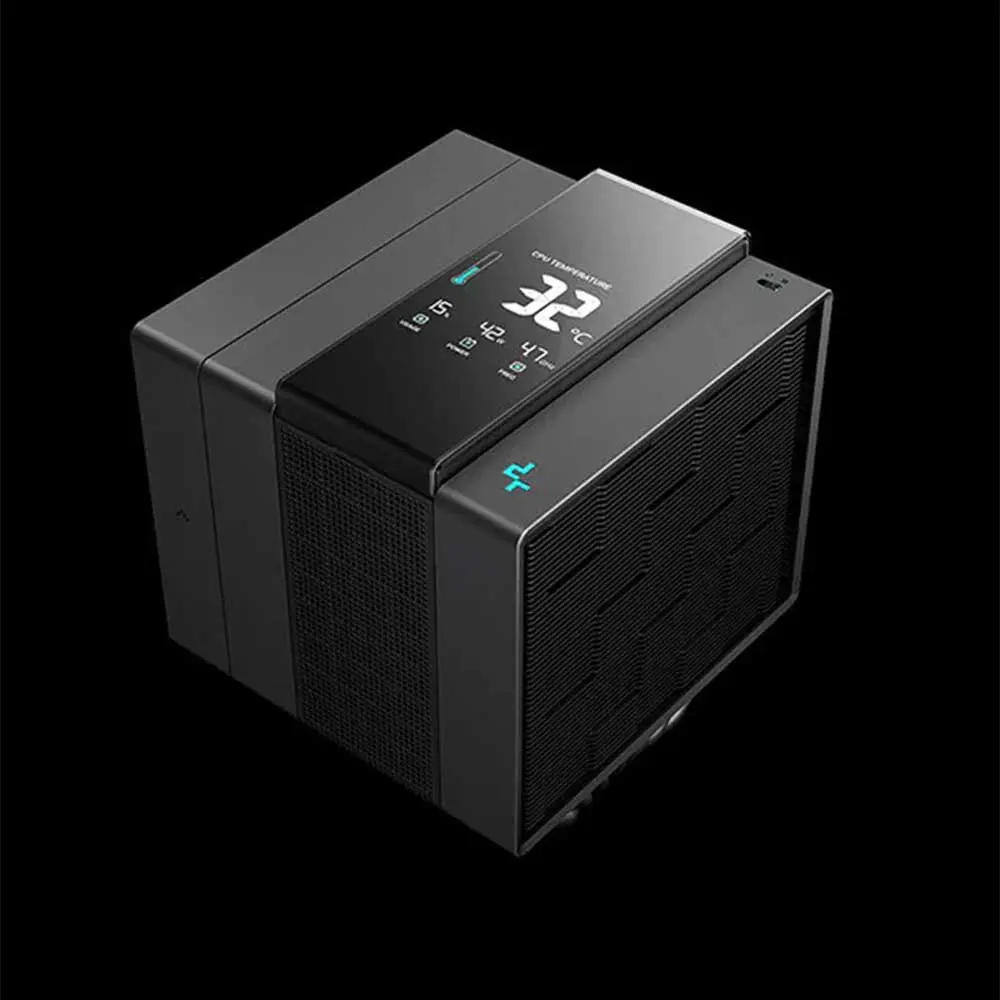

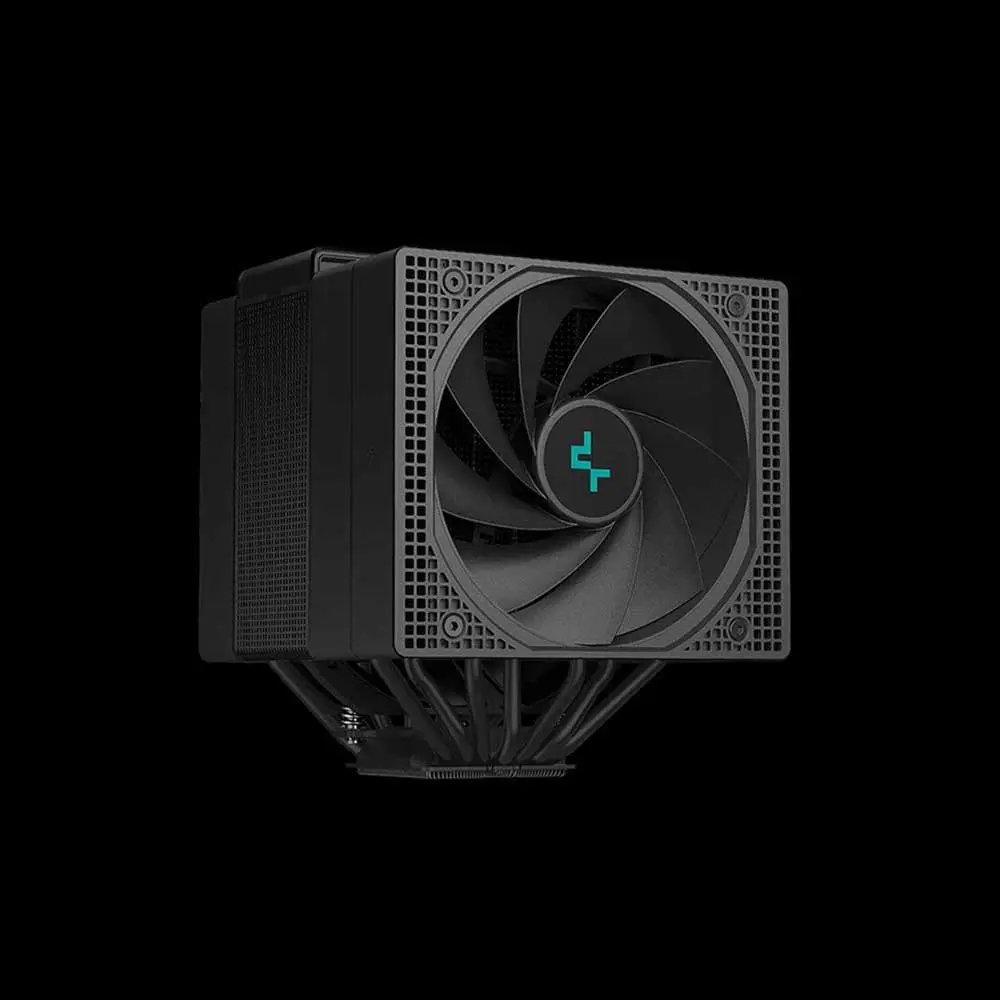

Deepcool Assassin IV VC Vision Digital Air Cooler
Flagship air cooler series gets a drastic addition in the form of the Deepcool ASSASSIN IV VC VISION. The cooling capacity gets a nice bump with the inclusion of a vapor chamber at the base that pushes the TDP to 300W! The upgrades don’t stop there, as a high-end quad-segmented digital display has also been added to the already impressive ASSASSIN IV cooler. An aesthetical cooling powerhouse that has two sound profiles and a digital screen—air coolers can have it all.
| Application For | |
| Intel | LGA2066/2011-v3/2011/1700/1200/1150/1151/1155 |
| AMD | AM5 / AM4 |
| Technical Specs | |
| Product Dimensions | 147×144×172 mm(L×W×H) |
| Heatsink Dimensions | 140×110×160 mm(L×W×H) |
| Net Weight | 1780 g |
| Heatpipe | Ø6 mm×7 pcs |
| Fan Dimensions | 140×140×25 mm(L×W×H) / 120×120×25 mm(L×W×H) |
| Fan Speed (Performance Mode) | 500~1800 RPM±10% / 500~1700 RPM±10% |
| Fan Airflow (Performance Mode) | 61.25 CFM / 58.06 CFM |
| Fan Air Pressure (Performance Mode) | 3.76 mmAq / 2.1 mmAq |
| Overall Noise (Performance Mode) | ≤29.3 dB(A) |
| Fan Speed (Quiet Mode) | 500~1450 RPM±10% / 500~1350 RPM±10% |
| Fan Airflow (Quiet Mode) | 48.55 CFM / 46.75 CFM |
| Fan Air Pressure (Quiet Mode) | 2.46 mmAq / 1.35 mmAq |
| Overall Noise (Quiet Mode) | ≤22.6 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Fluid Dynamic Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.2 A / 0.2 A |
| Fan Power Consumption | 2.4W / 2.4 W |
| Rated Voltage | 12 VDC |
| Power Consumption(Performance Mode) | 4.8W |
| Power Consumption(Quiet Mode) | 3.6W |
| Display Module Rated Voltage | 0.08 A±10% |
| Display Module Rated Current | 5 VDC |
| Display Module Power Consumption | 0.4 W |
| Display Area | 44.6×53.6 mm |
| EAN | 6933412729136 |
| P/N | R-ASN4-BKNVMD-G |
| Warranty | 1 Year |
| Note** | **Prices, Specifications & Features are subject to change without notice |
