Description

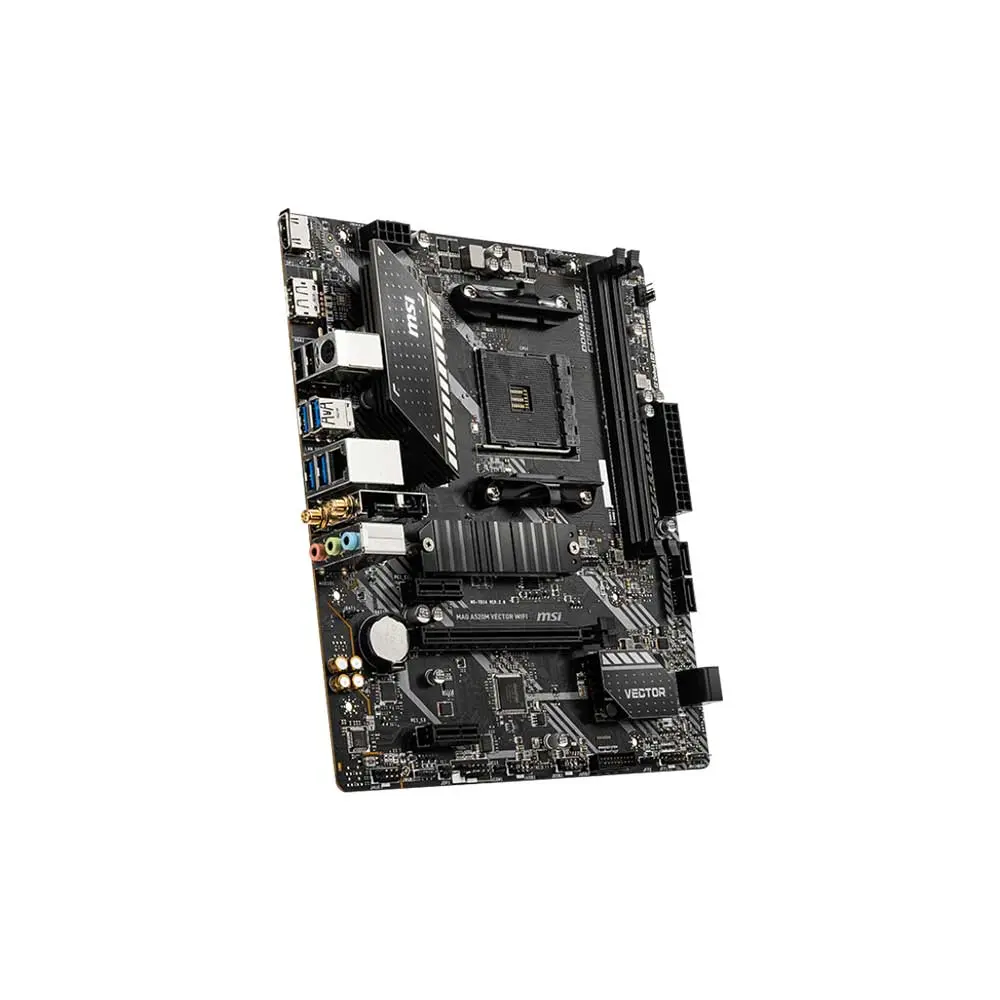

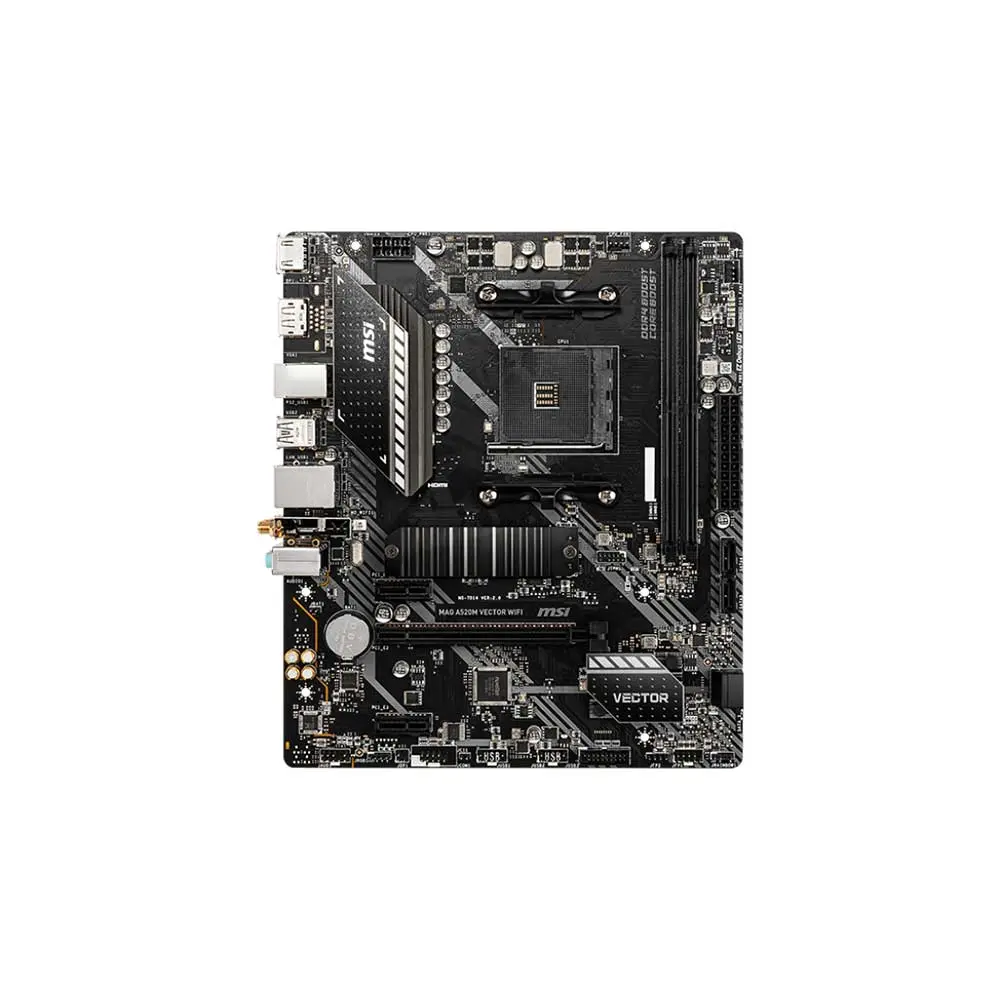

MSI MAG A520M Vector WiFi AM4 Micro ATX Motherboard
- Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors
- Supports DDR4 Memory, up to 4600(OC) MHz
- Extended Heatsink Design: Leading heatsink design, extended for maximum cooling and performance
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
- M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster
- Core Boost: With premium layout and digital power design to support more cores and provide better performance
- 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability
- Audio Boost: Reward your ears with studio grade sound quality
- Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface
| Socket | AMD Socket AM4 |
| Chipset | AMD® A520 Chipset |
| Memory Channel | Dual |
| DIMM Slots | 2 |
| Max Memory (GB) | 64 |
| PCI-E x16 | 1 |
| PCI-E Gen | Gen 3 |
| PCI-E x1 | 2 |
| SATAIII | 4 |
| M.2 Slot | 1 |
| RAID | 0/1/10 |
| TPM (header) | 1 |
| USB 3.2 ports (Front) | 2(Gen 1, Type A) |
| USB 3.2 ports (Rear) | 4(Gen 1, Type A) |
| USB 2.0 ports (Front) | 4 |
| USB 2.0 ports (Rear) | 2(Type A) |
| Serial ports(Front) | 1 |
| Audio ports (Rear) | Realtek® ALC892/ALC897 Codec |
| DisplayPort | 1 |
| HDMI | 1 |
| DirectX | 12 |
| CPU Support | Support for Windows® 10 64-bit |
| Form Factor | M-ATX |
| Warranty | 3 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
