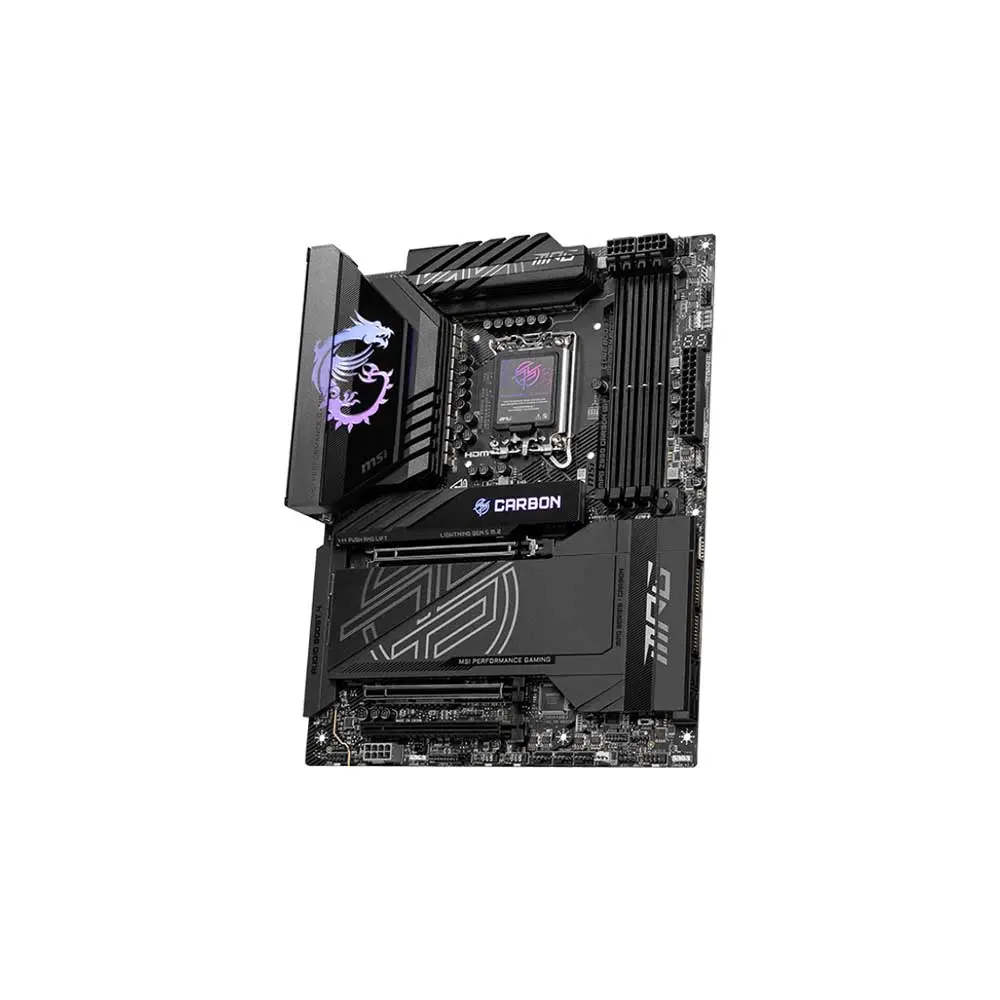

Msi Mpg Z890 Carbon WiFi LGA1851 ATX Motherboard
MSI MPG Z890 CARBON WIFI employs a carbon black color scheme and stylish pattern over Mystic light RGB lighting to show a different identity. It is also powerful inside by featuring Killer 5G LAN and Wi-Fi 7 solution, Thunderbolt 4, Supplemental PCIe Power and the effortless EZ DIY designs, making this motherboard definetly one of the best Z890 ATX motherboards for Intel Core Ultra processors.
- Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, up to 9200+ MT/s (OC)
- Ultra Performance: Direct 20+1+1+1 phases power, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2
- Ultra Connect: Thunderbolt™ 4 and Intel® Killer™ 5G LAN + 2.5G LAN with Wi-Fi 7 Solution – The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost 4: Reward your ears with studio grade sound quality for the most immersive gaming experience
| Chipset | INTEL Z890 |
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851 |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 9200 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports Intel POR Speed and JEDEC Speed |
| Onboard Graphics | 1x HDMI™ Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort ThundeboltTM 4 ports, supporting DisplayPort 1.4 with HBR3 over USB Type-C, with a maximum resolution of 8K@60Hz* |
| Slot | 3x PCI-E x16 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) • PCI_E1 supports BIOS adjustment to x8+x4+x4* |
| Audio | Realtek® ALC1220P Codec 7.1-Channel USB High Defination Audio Supports S/PDIF output |
| Storage | 5x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices 4x SATA 6G (Qty) |
| RAID | Supports RAID 0, RAID 1, RAID 5 and Raid 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and Raid 10 for M.2 NVMe storage devices |
| Onboard Thunderbolt | 2x Thunderbolt4 ports (Rear) Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display |
| USB | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 10x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) *USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1 |
| LAN | 1x Intel® Killer™ E5000B 5G LAN 1x Intel® I226V 2.5G LAN |
| Internal I/O | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
| Wireless LAN & Bluetooth | Intel® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM |
| LED Feature | 4x EZ Debug LED 1x EZ Digit Debug LED |

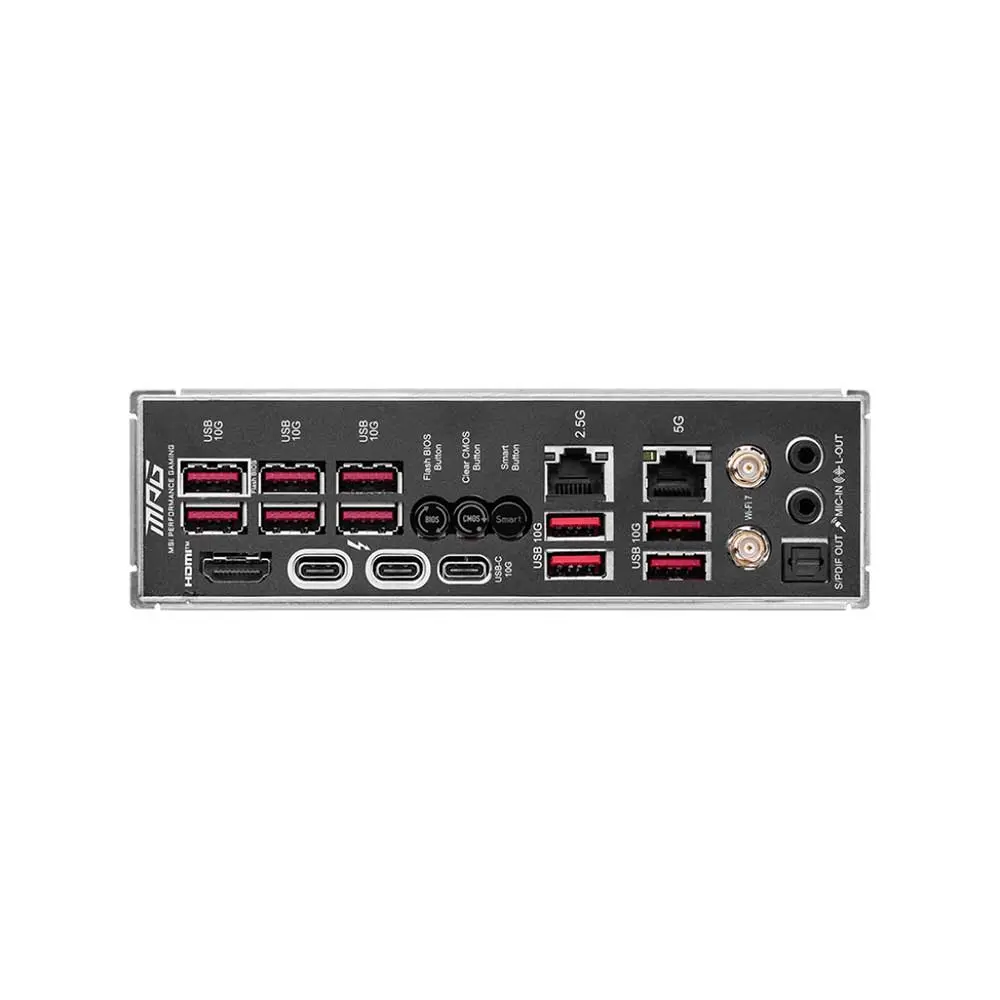

| Back Panel Ports |
|
| Operating System | Support for Windows® 11 64-bit |
| PCB Info | ATX 243.84mmx304.8mm |
| Warranty | 3 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
