Description

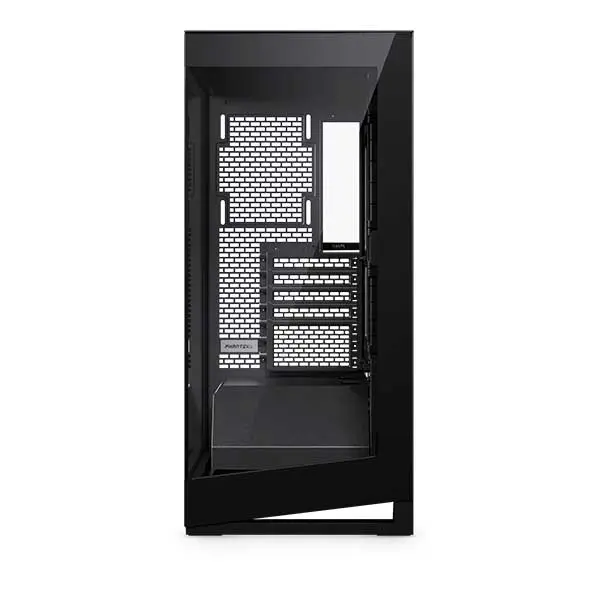

Phanteks NV5 MKII E-Atx Mid Tower Tempered Glass Cabinet Black
Meet the Phanteks NV5 MKII mid-tower chassis, featuring a stunning near-seamless glass view and support for 8 x 120 mm fans and dedicated space for a 360 radiator in the top and side for optimal cooling. Supports rear side connector mainboards (BTF & Project Zero), with a dedicated bottom fan for enhanced GPU cooling and spacious interior to accommodate modern GPUs and cables, the NV5 MKII is designed to excel.
Its PSU cover opens for easy cable management, and its DRGB lighting system is customizable and easy to sync. With its sleek design and convenient features, the NV5 MKII is the perfect choice for a high-performance PC build that looks as good as it performs.
Features
- Create a picture-perfect PC with a seamless glass design.
- Support for the new Rear-Connect Mainboards for a zero-cable build.
- Increased chassis width to support wider GPUs and PCIe cables.
- Premium build quality throughout the strong and reinforced outer frame.
- High Airflow Performance with fine mesh, dust filter and 8x 120mm fan positions.
- Ready for ultimate water-cooling configurations with dual 360 radiator support.
- Integrated D-RGB lighting in the PSU Cover with built-in D-RGB Controller that works out of the box and can sync with the mainboard.
| Brand | Phanteks |
| Model | NV5 MK2 |
| Part Number | PH-NV523TG_DBK02 |
| Type | Atx Mid Tower |
| Color | Black |
| Case Material | Steel / Tempered Glass |
| With Power Supply | No |
| Motherboard Compatibility | ATX, Rear-Connect ATX, micro-ATX, mini-ITX, E-ATX (up to 280mm without GPU Support Bracket) |
| Side Panel Window | Front and Side Tempered Glass |
| LED | RGB |
| Internal 3.5″ Drive Bays | 3 |
| Internal 2.5″ Drive Bays | 4 |
| Expansion Slots | 7 |
| Front Ports | 2 x USB 3.0, USB-C Gen 2, 1 x Audio |
| Fan Options | Bottom – 1 x 120mm / Rear – 1 x 120mm / Side – 3 x 120mm / Top – 3 x 120mm |
| Radiator Options | Rear – Up to 120mm / Side – Up to 360mm / Top – Up to 360mm |
| Max GPU Length | 440 mm Length, 170 mm Width |
| Max CPU Cooler Height | 180mm |
| Max PSU Length | 230mm |
| Dimensions (HxWxD) | 528 x 239 x 477 mm / 20.8″ x 9.4″ x 18.8″ |
| Weight | 11.28 kg / 24.9 lbs. |
| Package Content | NV5 Chassis 1 x D-RGB Controller 1 x Storage Door 1 x GPU Support BracketAccessory Box 6 x Zip ties 22 x MB/SSD Screw 4 x Thumb Screw 12 x HDD+Case Screw 1 x Standoff Removal Tool 1 x MB stand-off 4 x PSU Screw |
| Warranty | 5 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
